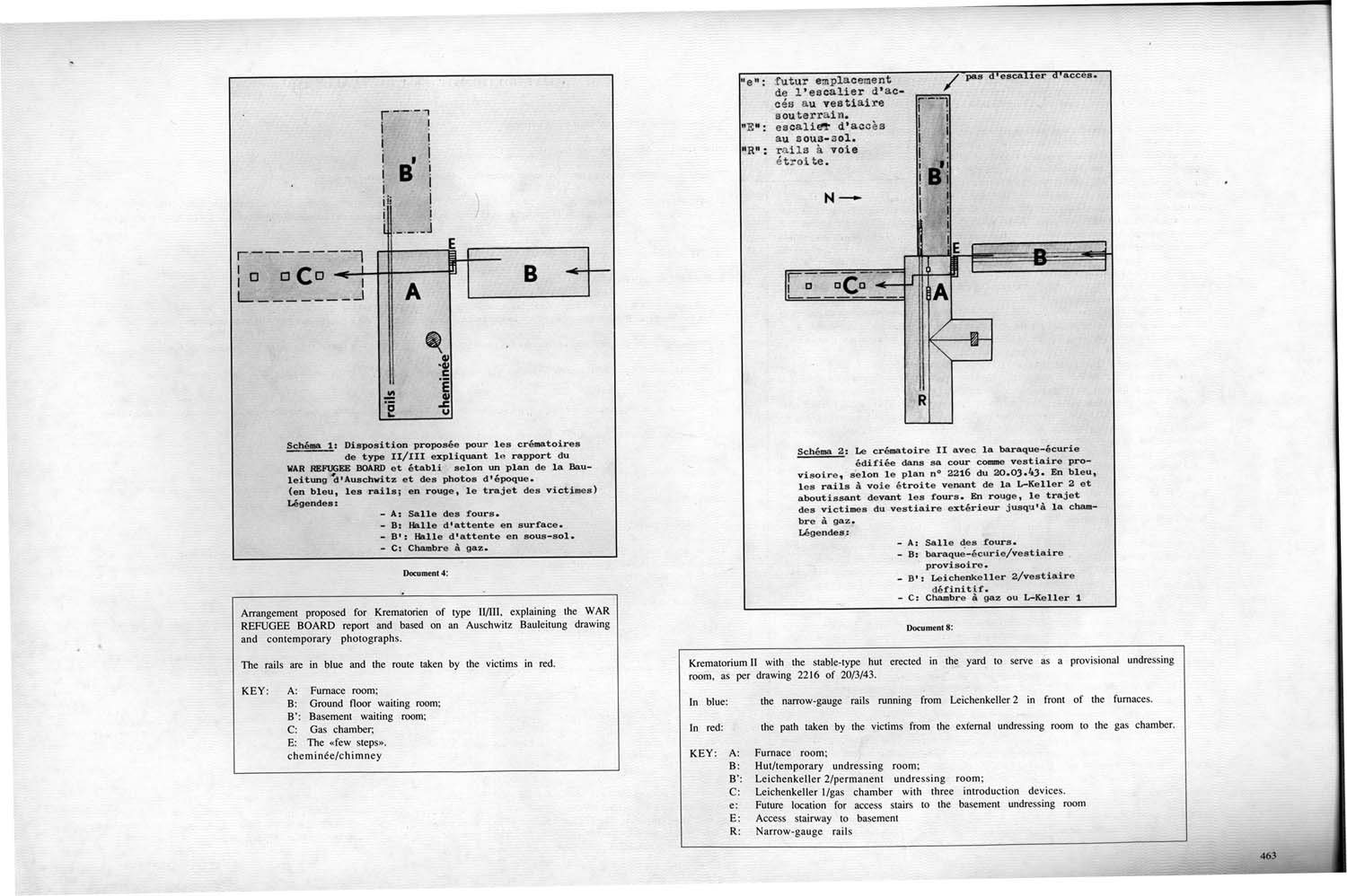

| Document 4 |
|
| |
|

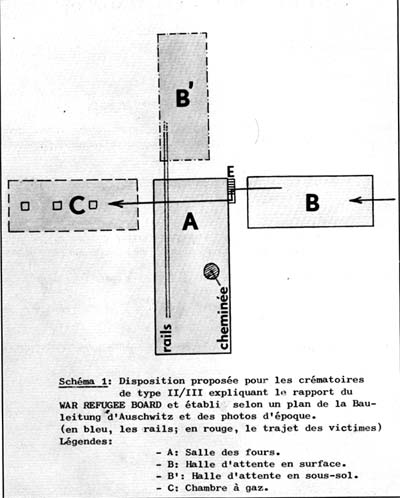

Arrangement proposed for Krematorien of type II/III, explaining the WAR REFUGEE BOARD report and based on an Auschwitz Bauleitung drawing and contemporary photographs.
The rails are in blue and the route taken by the victims in red |
|
| KEY: |
A: |
Furnace room; |
|
| |
B: |
Ground floor waiting room: |
|
| |
B': |
Basement waiting room; |
|
| |
C: |
Gas chamber. |
|
| |
E: |
The “few steps”. |
|
| |
Cheminée / chimney |
|
|
|
|
 |
| |
|
| |

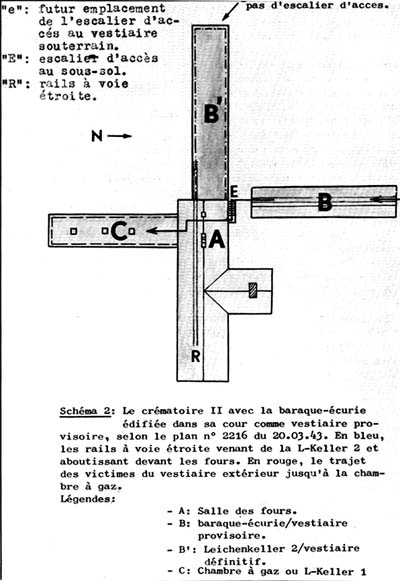

Document 8: |
| |
|
| |
Krematorium II with the stable-type hut erected in the yard to serve as a provisional undressing room, as per drawing 2216 of 20/3/43. |
| |
|
| |
In blue: |
|
the narrow-gauge rails running from Leichenkeller 2 in front of the furnaces. |
| |
In red: |
|
the path taken by the victims from the external undressing room to the gas chamber. |
| |
|
|
|
| |
KEY: |
A: |
Furnace room; |
| |
|
B: |
Hut / temporary undressing room; |
| |
|
B': |
Leichenkeller 2 / permanent undressing room; |
| |
|
C: |
Leichenkeller 1 / gas chamber with three introduction devices. |
| |
|
e: |
Future location for access stairs to the basement undressing room |
| |
|
E: |
Access stairway to basement |
| |
|
R: |
Narrow-gauge rails |
|
