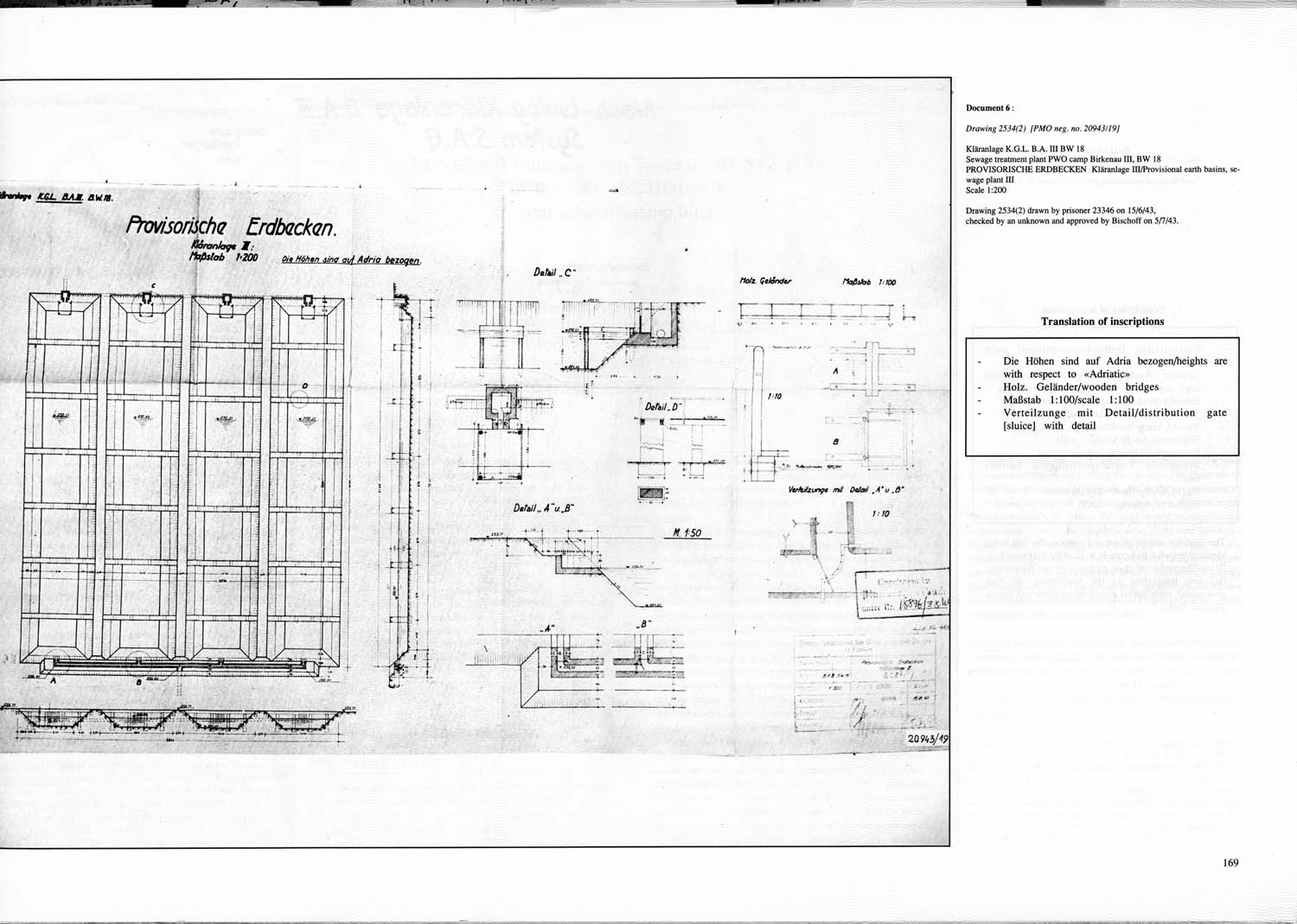

Document 6:

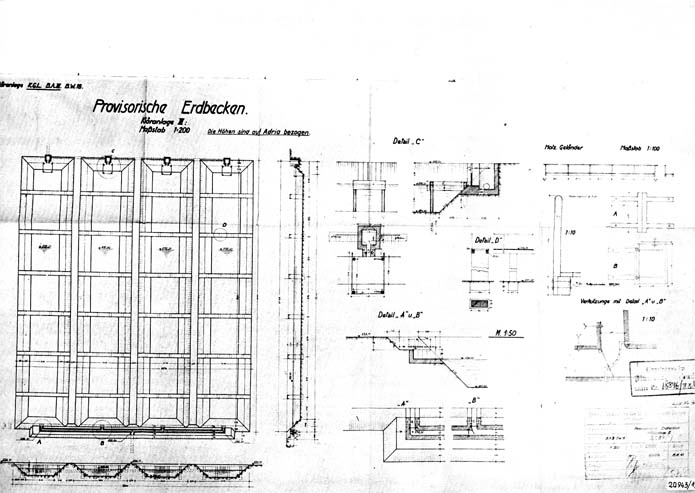

Drawing 2534(2) [PMO neg. no. 20943/19] |
|
| |
Kläranlage K.G.L. B.A. III BW 18
Sewage treatment plant PWO camp Birkenau
camp III, BW 18
PROVISORISCHE ERDBECKEN Kläranlage III / Provisional earth basins, sewage plant III
Scale 1:200
Drawing 2524(2) drawn by prisoner 23346 on 15/6/43, checked by an unknown and approved by Bischoff on 5/7/43. |
|
| |
Translation of inscriptions |
|
| · |
Die Höhen sind auf Adria bezogen /
heights are with respect to “Adriatic” |
|
| · |
Holz Geländer / wooden bridges |
|
| · |
Maßstab 1:100 / scale 1:100 |
|
| · |
Verteilzunge mit Detail / distribution gate
[sluice] with detail |
|
|
