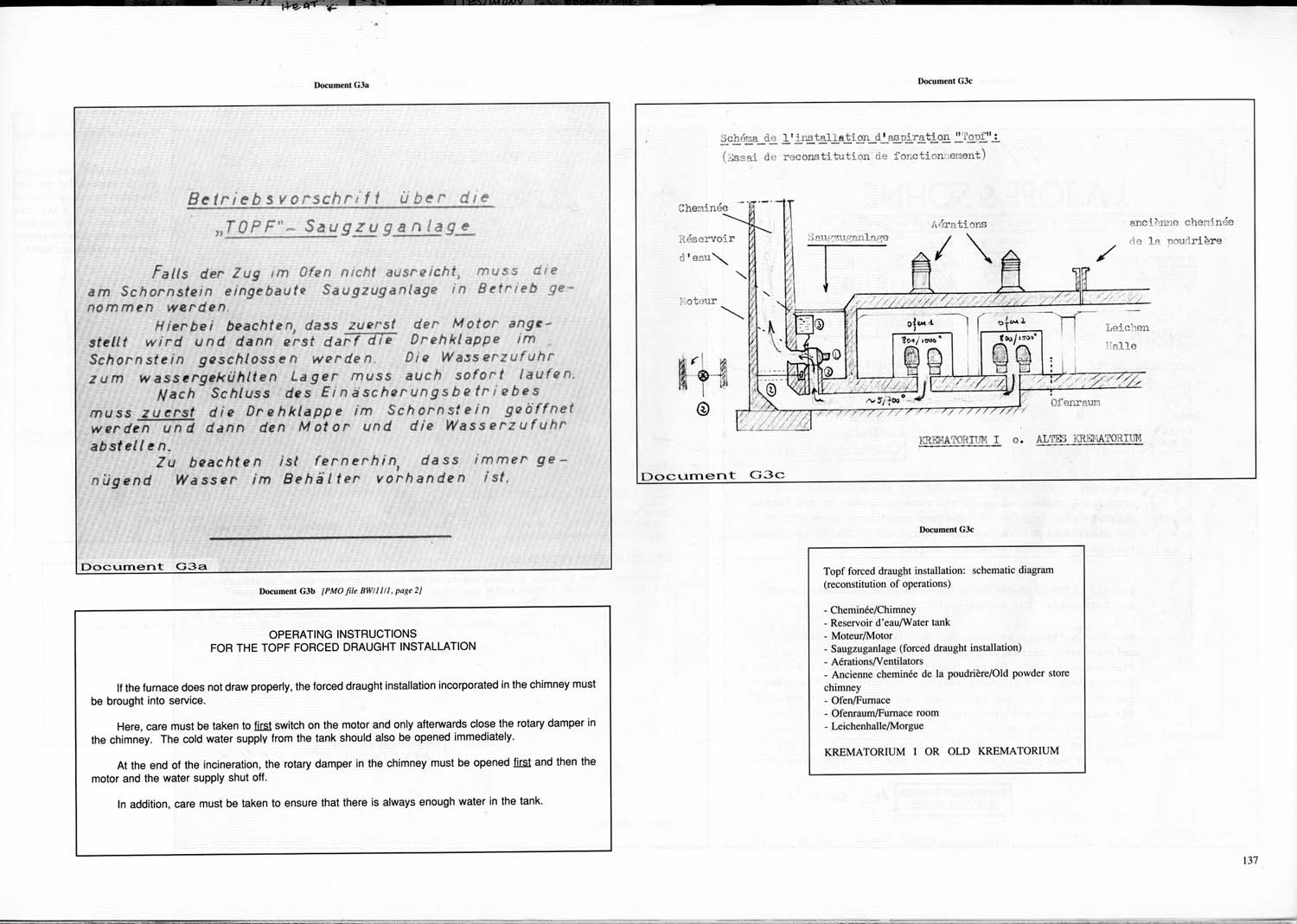

| Document G3a |
 |
Document G3b
[PMO File BW11/1, page 2] |

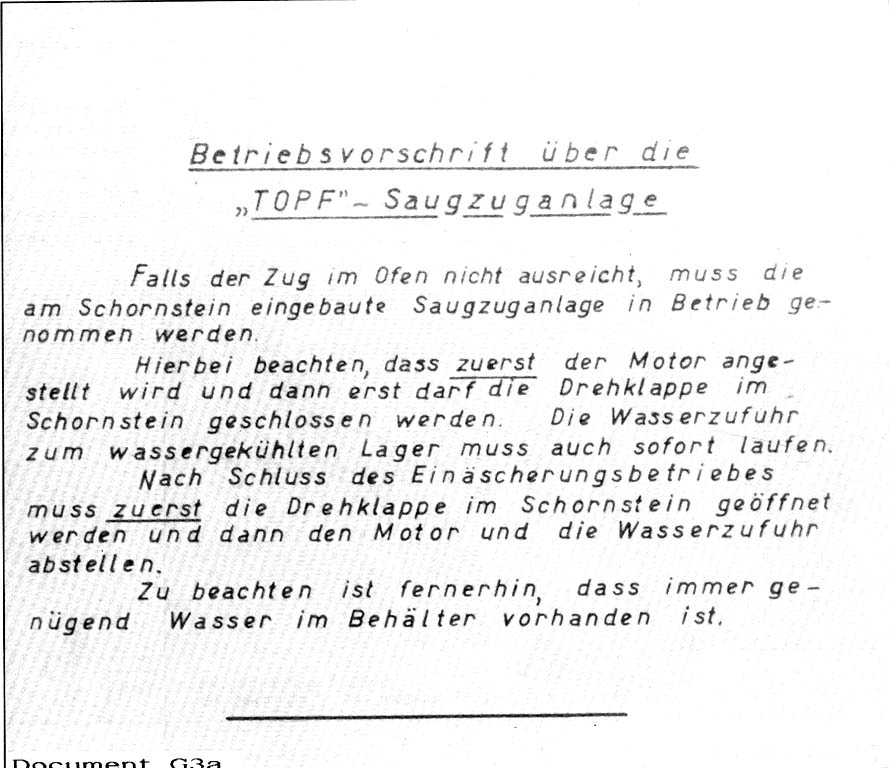

OPERATING INSTRUCTIONS
FOR THE TOPF FORCED DRAUGHT INSTALLATION |
If the furnace does not draw properly, the forced draught installation incorporated in the chimney must be brought into service.
Here, care must be taken to first switch on the motor and only afterwards close the rotary damper in the chimney. The cold water supply from the tank should also be opened immediately.
At the end of the incineration, the rotary damper in the chimney must be opened first and then the motor and the water supply shut off.
In addition, care must be taken to ensure that there is always enough water in the tank |
|
| |
| Document G3c |
 |
| |
Document G3c |
|
| |
|
|
| |

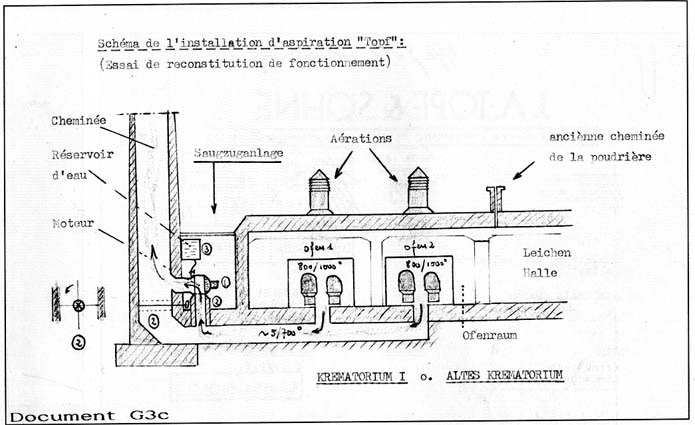

Topf forced draught installation: schematic diagram (reconstitution of operations) |
|
| |
|
|
| |
· |
Cheminee / Chimney |
|
| |
· |
Reservoir d'eau / Water tank |
|
| |
· |
Motcur / Motor |
|
| |
· |
Saugzuganlage (forced draught installation) |
|
| |
· |
Aerations / Ventilators |
|
| |
· |
Ancienne cheminee de la poudriere / Old powder store chimney |
|
| |
· |
Ofen / Fumace |
|
| |
· |
Ofenraum / Furnace room |
|
| |
· |
Leichenhalle / Morgue |
|
| |
|
|
|
| |
KREMATORIUM I OR OLD KREMATORIUM |
|
|
|
